| GPU Name |

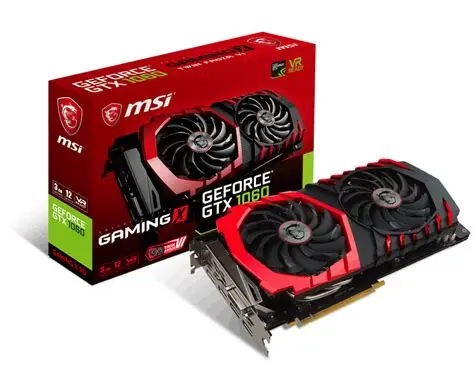

GeForce GTX 1060 (GP106-300) |
Mid-range model from the Pascal architecture (10-series). |
| VRAM Capacity |
3 GB |
The primary limitation for high-texture settings in modern AAA games. |
| VRAM Type |
GDDR5 |
Fast memory for its generation. |
| CUDA Cores |
1152 Units |
Lower than the 6GB version (which has 1280 cores). |
| Base / Boost Clock |
$1506 \text{ MHz} / 1708 \text{ MHz}$ |
Reference clocks. Partner cards often have higher factory overclock speeds. |
| Memory Clock |
$8008 \text{ MHz}$ Effective |
Runs at $8 \text{ Gbps}$ effective speed. |
| Memory Bus Width |
192-bit |
A wide bus is crucial for mid-range performance. |
| Memory Bandwidth |
$192 \text{ GB/s}$ |
Excellent bandwidth, but performance is ultimately VRAM-limited. |
| Thermal Design Power (TDP) |
$120 \text{ W}$ |
Moderate power consumption, requiring an external connector. |
| External Power |
1x 6-pin connector |
Minimum power supply recommendation is typically $400 \text{ W}$. |
| Interface |
PCI Express 3.0 x16 |
Standard desktop connection. |
| DirectX Support |
12 (Feature Level 12_1) |
Full feature support for DirectX 12. |
| VR Ready |
Yes |
Supports VR applications, but performance depends on the game and settings. |
| Max Resolution |
$7680 \times 4320$ @ $60 \text{ Hz}$ (Digital) |
Achieved via dual DisplayPort connections. |
| Display Outputs |
3x DisplayPort 1.4, 1x HDMI 2.0b, 1x DL-DVI-D |
Supports up to 4 simultaneous displays. |
